Permanent Anti-static Homogeneous Vinyl Flooring For lab
Key Features
Static Dissipation: Effectively controls and eliminates static buildup, protecting sensitive electronics and equipment.
Durability: High-quality materials ensure long-lasting performance, even in high-traffic areas.
Safety: Reduces the risk of electrostatic discharge (ESD), protecting both personnel and equipment.
Versatility: Suitable for data centers, laboratories, manufacturing facilities, and more.
Applications
- Data Centers
- Electronics Manufacturing

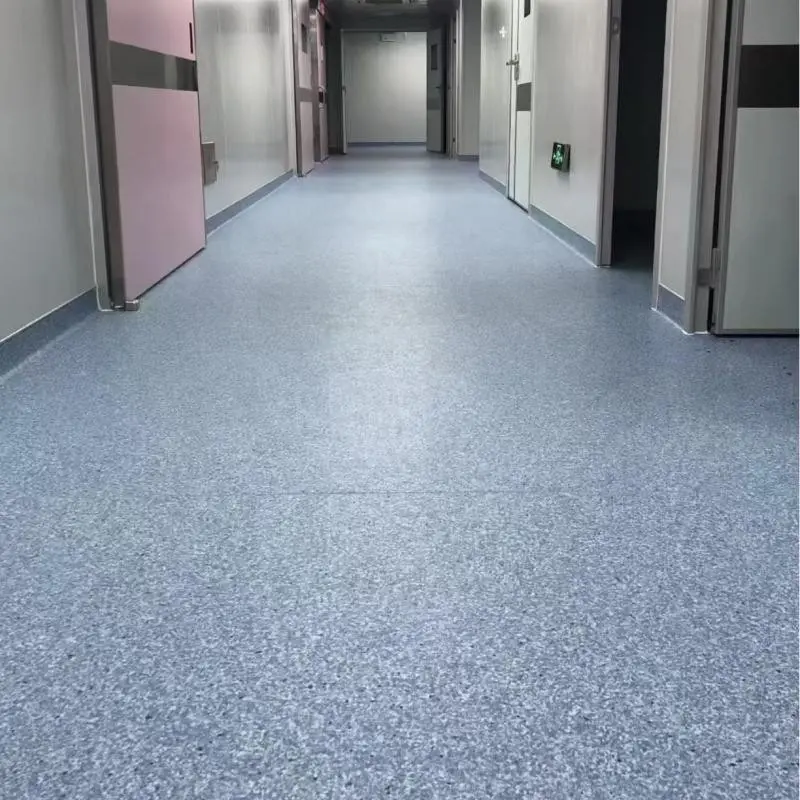

- Healthcare Facilities
- Telecommunications

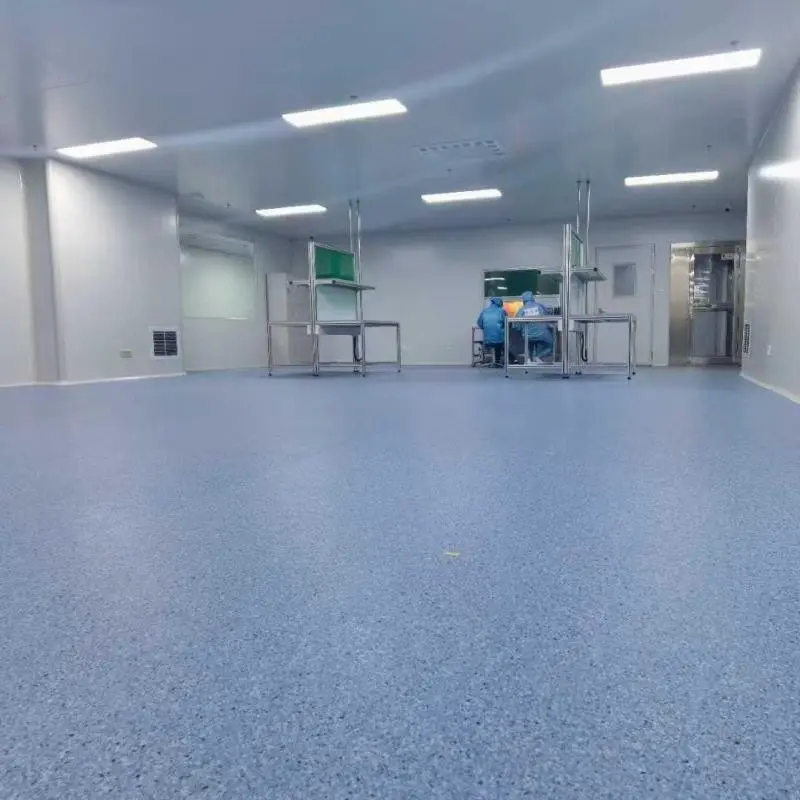

- Cleanrooms
Upgrade your workspace with anti-static flooring and experience enhanced safety, efficiency, and reliability. Contact us today to learn more about our products and solutions!
Technical Specifications
Item |
Standard |
Index |
Size |
EN426 |
200*2000mm |
| ||
Thickness |
EN428 |
2.0, 2.5, 3.0mm |
Weight |
EN430 |
2.0mm, 3.2kgs/m3 |
2.5mm, 4.0/kgs/m3 | ||
3.0mm, 4.8/kgs/m3 | ||

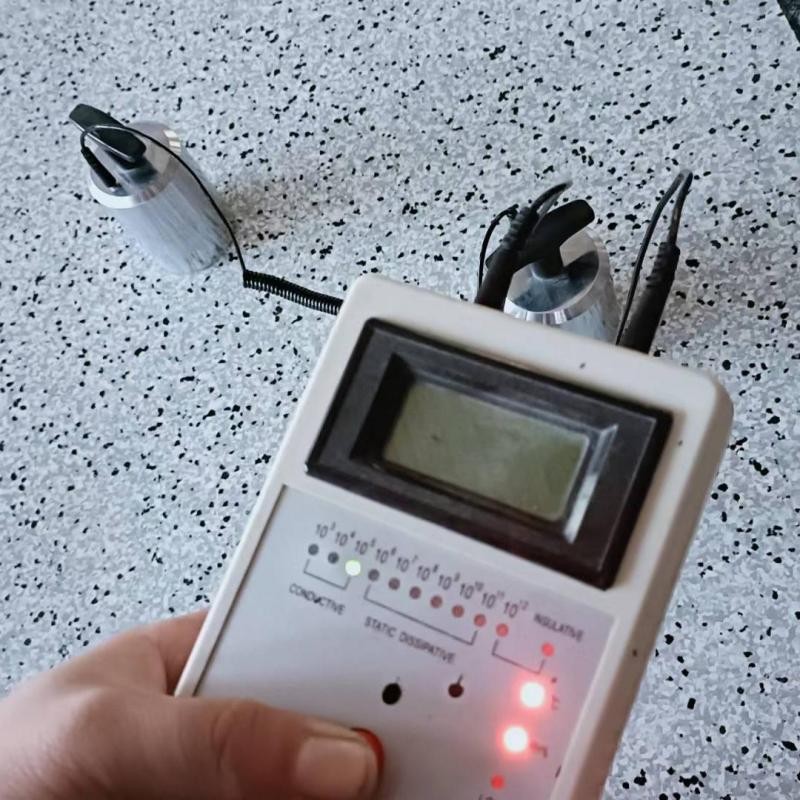

Surface Resistance |
|
|
ASTMF-1550 or NFPA99 |
10^6-10^9 Ω Dissipative |
|
Decay Time |
SJ/T10694-2006(VI<100V) |
Equal 0.4S |
Charge Voltage |
SJ/T10694-2006(VI<100V) |
Equal 70 |
Fire Resistance |
DIN 4102 |
B1 |
Combustion Properties |
SJ/T11236-2001(<10s,FV-0) |
Equal 0.35s Ifv-0 |
Amount of anti-wear |
SJ/T11236-2001(less than 0.02g/cm3, 110r) |
Equal 0.014 |
Anti-wear Properties |
EN660pt2 |
Ten-T < 2.0 mm3 |
Wheel Pressure |
EN425 |
No influence |
Residual Concavity |
EN433, DIN51955 |
0.03mm(2.0mm) |
0.035mm(2.5mm) | ||
0.04mm(3mm) | ||
Dimensional stability |
EN434 |
Less than 0.1% |
Color fastness |
IDO105BO2 |
At least 6 |
Resistance to chemicals |
DIN423,DIN51958 |
offers excellent resistance ask for special sheet |
Key Applications

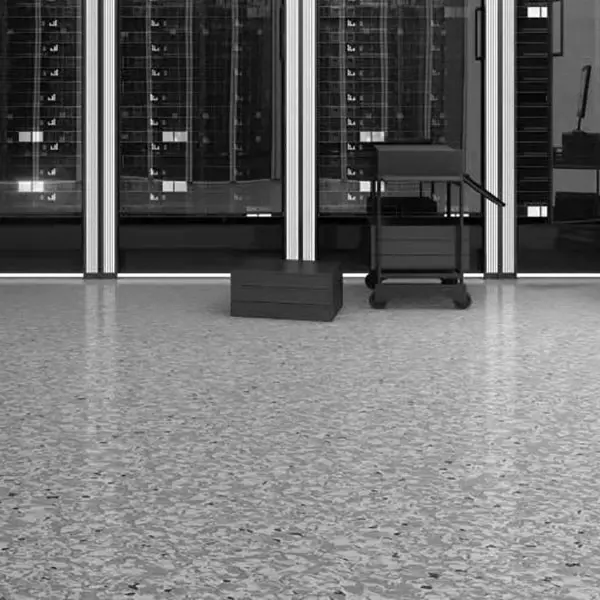

● Data centers & server rooms (protects IT infrastructure)
● Electronics manufacturing (prevents microchip damage)

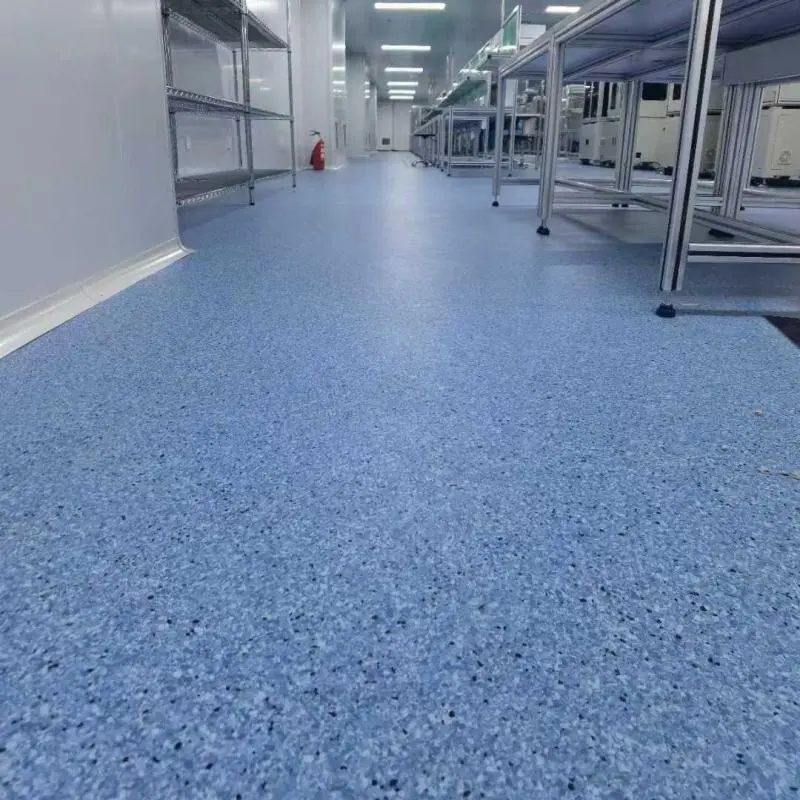

● Healthcare labs (ensures precision instrument accuracy)
● Aerospace facilities (mitigates explosion risks)
● Telecommunications hubs (maintains signal integrity)

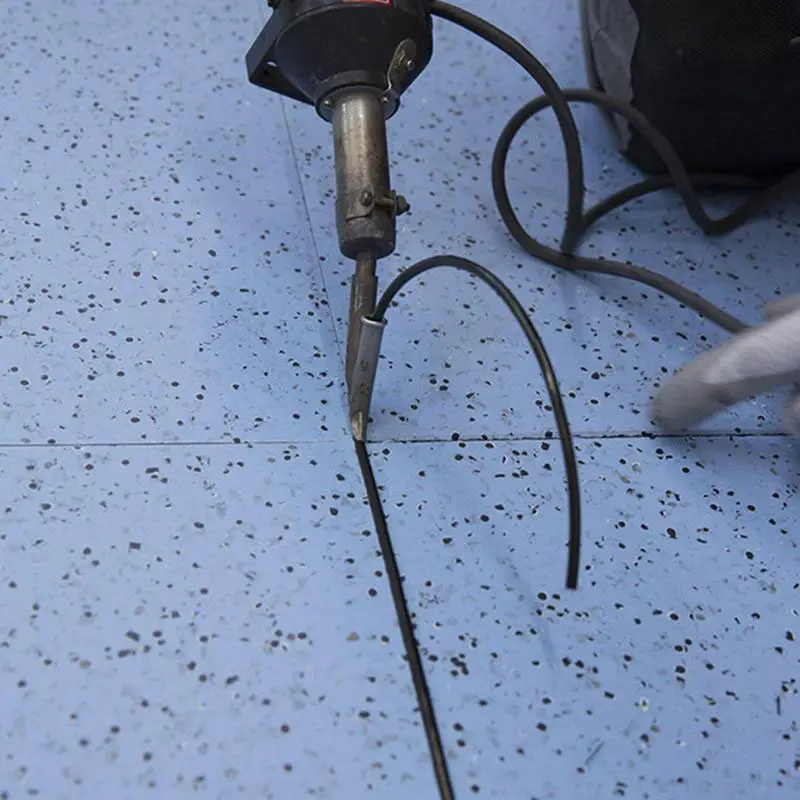

The Installation
Conductive ESD floor should be installed on Sub floors that are leveled ,smooth and free of cracks ,Residual humidity should be under 2.5% tested with the CM Dumb test . Anti-static floor adhesive and installation site should reach a temperature of at least 18 at least 24 hours before installation.and paste the tiles with qualified conductive glue below 10 ohm for further details on installation methods.
